PEAK Pro Drone Washing Trailer with ABZ C10 | Pressure, Soft Wash, RO/DI
Talk to a Drone Nerds expert
This item is priced by quote. Tell us what you need and we'll have numbers back fast.
DRONE NERDS RECOMMENDED ACCESSORIES

PEAK Pro + C10 The whole wash plant, ready to tow.
Everything you need to launch a drone washing operation, already installed. The same premium plant as APEX Pro, with high-pressure wash, soft wash, chemical metering and 4-stage RO/DI pure water, comes built into an American-made 7′ × 14′ enclosed tandem-axle trailer. The ABZ C10 cleaning drone carries it up to 60 meters, with four batteries, the Smart Charger 3000, a nozzle kit and 3-day intro Drone Wash training. Nothing to fit out: hitch it to a rated tow vehicle and go.
The drone does
the high work.
The ABZ C10 brings the skid's water to facades, glass and rooftops up to 60 meters, with no scaffolding, cranes or rope access, while the crew stays on the ground.
-
60m
Cleaning height
Facades, curtain walls, rooftops and structures up to about 197 ft.
-
Radar
Holds its standoff
Onboard radar keeps a safe, steady distance from the surface for repeatable passes.
-
Modes
Mission or Manual
Automated Mission Mode flies a pre-set loop on large uniform walls (RTK recommended); Manual Mode handles irregular surfaces and windy sites.
-
M12
Proven airframe
Built on the ABZ M12 platform. CE, ISO and FCC certified.
A rig matched
to the wand.
The C10 in this suite carries the Drone Nerds high-flow wand modification, available only through us. Its two modes line up with the skid's two pump systems, so the drone gets the flow and pressure it was tuned for.
-
High-pressure mode
Triplex to wand
The skid's triplex plunger pump feeds the wand's high-pressure mode for hard surfaces and heavy buildup.
- Skid supplies5.5 GPM · 3,000 PSI
- Wand mode spec6 GPM · 3,000 PSI
- PumpHonda GX390, gas
-
Soft-wash mode
Comet P40 to wand
The soft-wash system feeds the wand's low-pressure mode for siding, glass and coated surfaces, with Hydro-Mixer XL metering.
- Skid supplies11.5 GPM · 300 PSI
- Wand mode spec14 GPM · 300 PSI
- PumpHonda, gas
Every wash system,
one skid.
PEAK Pro consolidates every mobile-cleaning workflow into a single TIG-welded aluminum skid on a stainless platform with vibration isolators, installed in the trailer, pre-plumbed and pre-wired.
-
High pressure5.5GPM3,000 PSI · triplex plunger pump · Honda GX390
-
Soft wash11.5GPM300 PSI · Comet P40 · Honda GX160/GX200
-
Pure water4stageRO/DI · 3 RO membranes · 110 V booster · dual TDS
-
Onboard tanks200galRaw / DI water · 55 gal chemical · 2 × 7 gal soap
-
System 1
High-Pressure Wash
For heavy soil, concrete and large hard surfaces. A gear-driven industrial triplex plunger pump on an electric-start Honda.
- Flow5.5 GPM
- Pressure3,000 PSI
- EngineHonda GX390, electric start
-
System 2
Soft Wash
High-volume, low-pressure washing for siding, roofs and delicate surfaces, with Hydro-Mixer XL metering and no batch mixing.
- Flow11.5 GPM
- Pressure300 PSI
- Pump / engineComet P40 · Honda GX160/GX200
Engineered for pros,
run by one operator.
RigLink turns engine starts, chemical injection and rinse into a button press from wherever you're working, and electric reels do the heavy lifting on hose.

-
RigLink
Remote control
Remote start/stop on both engines, a remote downstream injector for high pressure, and a remote rinse module for soft wash (chem/soap on and off).
-
3 × 12″
Electric hose reels
Aluminum frames, stainless internals: high pressure 200 ft × 3/8″ grey non-marking, water supply 200 ft × 5/8″, soft wash 100 ft × 5/8″ + 200 ft × 3/8″.
-
Dosing
ClearView chemical metering
Hydro-Mixer XL for soft wash with no batch mixing, ClearView V4 soap selector with dropstick for high pressure, and a two-soap selector.
-
12 V
Marine-grade electrical
Group 27 marine deep-cycle battery in a waterproof box, waterproof fuse panel with on/off switch, and an onboard charger.
-
Tools
Guns, wands and JRODs
High-pressure gun, insulated wand and JROD with nozzles, plus a soft-wash gun, wand and JROD with nozzles.
Inside the skid,
component by component.
Every system is built for daily commercial use, from the TIG-welded frame to the stainless-platform engines.
-
PlatformTIG-welded aluminum
Premium aluminum skid, TIG-welded in house. 96″ L × 48″ W × 60″ H.
-
Water200-gallon tank
Raw and pure-water tank feeding both pump systems.
-
High pressureTriplex plunger pump
Gear-driven industrial triplex on a Honda GX390 electric-start engine, on a stainless platform with vibration isolators. Downstream chemical injection with a ClearView V4 soap selector and dropstick.
-
Soft washComet P40 diaphragm pump
Gear-driven, on a Honda electric-start engine with a stainless platform and vibration isolators. The ClearView Hydro-Mixer XL meters water, chemical and soap while you clean, so there's no batch mixing.
-
Pure water4-stage RO/DI
Sediment and carbon prefilters, three RO membranes and a DI polishing tank, fed by a 110 V booster pump with dual inline TDS. Spot-free water for glass and solar, for far longer than resin alone.
-
RemoteRigLink
Remote start/stop on both engines, a remote downstream injector on the high-pressure side, and a remote rinse module that switches chemical and soap on and off. The operator never walks back to the rig.
Serious water purity,
serious capacity.
Spot-free pure water from a 4-stage RO/DI system, and enough onboard storage to stay in the field all day without filling up at the customer's spigot.
-
4-stage
RO/DI filtration
Prefilters, reverse osmosis and DI for spot-free windows and solar.
-
3 + 110 V
RO membranes and booster
Three membranes in parallel, with a 110 V booster pump to hold pressure.
-
TDS
Inline dual TDS meter
Live purity in and out, so you know when membranes need service.
-
200 gal
Raw / DI water tank
A full day of soft wash or window cleaning without refills.
-
55 + 2×7
Chemical and soap tanks
55 gal chemical plus two 7 gal soap tanks for multiple chemistries.
Pro package:
windows and facades too.
PEAK Pro includes a manual window and facade kit, so the same rig handles ground-level glass with pure water while the drone works up high.
- Delivery
12 V pure-water pump
Feeds RO/DI water to the pole without running an engine.
- Hose
Manual hose reel
150 ft × 3/8″ water-fed-pole hose.
- Reach
30 ft Tucker carbon fiber pole
Water-fed pole and brush for windows and facades.

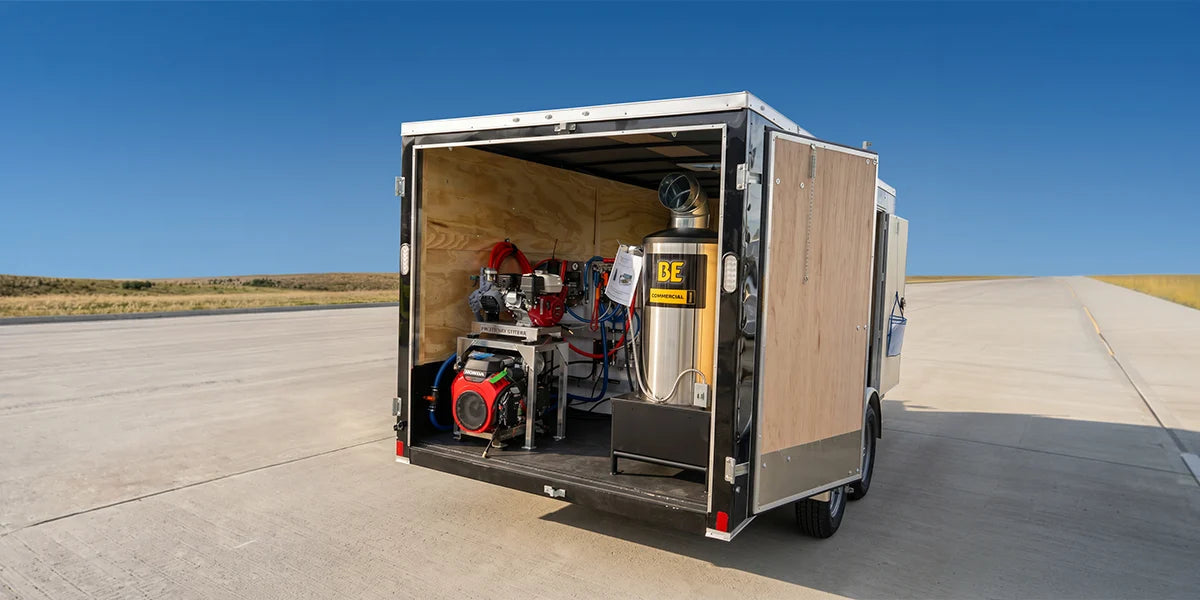

Hitch up.
Nothing to fit out.
The plant comes installed in an enclosed trailer, so there's no van to buy, no skid to fit and no downtime when your truck needs service. Any rated tow vehicle becomes a wash rig.
Built to work
- American-made white enclosed trailer 7′ × 14′
- Tandem axle 3,500 lb per axle
- V-nose
- Rear double doors and passenger-side door
- Weatherproof spray liner floor and first 18″ of walls
A tow vehicle
- Rated to tow the loaded trailer ask us for loaded weight before ordering
- Hitch and brake controller to match
- Nothing else to install
Trailer
or van?
Same wash plant either way. PEAK puts it in an enclosed trailer; APEX puts it in your van.
| Included | PEAK Pro Suite | APEX Pro Suite → | APEX Pro Skid Only → |
|---|---|---|---|
| Format | 7′ × 14′ enclosed trailer, included | Van skid | Van skid |
| You supply | Tow vehicle | High-top van | High-top van |
| Wash plant, Pro package | Yes | Yes | Yes |
| ABZ C10 drone kit | Yes | Yes | Not included |
| Drone Wash training | 3-day intro | 3-day intro | Not included |
Rule of thumb: have a truck and want the rig ready on day one, with no van to buy or fit out? PEAK. Running a high-top van fleet and want the rig inside it? APEX Pro Suite, or the skid only if you already own a C10.
Specifications
C10-PEAK-PRO: premium wash plant with Pro package in an enclosed trailer, plus the ABZ C10 kit.
- High pressure
- Flow / pressure5.5 GPM at 3,000 PSI
- PumpGear-driven triplex plunger
- EngineHonda GX390, electric start
- ChemicalRemote downstream injector, ClearView V4 with dropstick
- Soft wash
- Flow / pressure11.5 GPM at 300 PSI
- PumpComet P40 diaphragm, gear-driven
- EngineHonda GX160/GX200, electric start
- ChemicalHydro-Mixer XL, remote rinse module
- Pure water
- FiltrationSediment + carbon prefilters, RO, DI polish
- Membranes3 RO + 1 DI tank
- Booster110 V
- MonitoringInline dual TDS meter
- Tanks
- Raw / DI water200 gal
- Chemical55 gal
- Soap2 × 7 gal, two-soap selector
- Hose reels
- Reels3 × 12″ electric, aluminum frame, stainless internals
- High pressure200 ft × 3/8″ non-marking
- Water supply200 ft × 5/8″
- Soft wash100 ft × 5/8″ + 200 ft × 3/8″
- Skid and power
- SkidAluminum, TIG-welded in house
- PlatformStainless, vibration isolators
- BatteryGroup 27 marine deep-cycle
- ElectricalWaterproof fuse panel, onboard charger
- RemoteRigLink, both engines
- Trailer and package
- Trailer7′ × 14′ enclosed, American-made
- AxlesTandem, 3,500 lb per axle
- DoorsV-nose, rear double, passenger side
- LinerSpray-lined floor + 18″ of walls
- Pro package12 V pump, 150 ft WFP reel, 30 ft pole
- Not includedTow vehicle
- ABZ C10 drone
- Cleaning heightUp to 60 m (≈197 ft)
- AirframeABZ M12
- SensingOnboard radar
- Flight modesAutomated Mission, Manual
- WandDN high-flow, 2 modes
- Power4 batteries, Smart Charger 3000
- Training3-day intro Drone Wash
- SKUC10-PEAK-PRO
What's included
The complete skid rig as specified, pre-plumbed and pre-wired, installed in an enclosed trailer, plus a window and facade kit for the lower levels and the ABZ C10 drone kit for everything above. Tow vehicle not included.
- The complete wash plant
- TIG-welded aluminum skid, installed×1
- High-pressure system, 5.5 GPM / 3,000 PSI×1
- Soft wash system, 11.5 GPM / 300 PSI×1
- 4-stage RO/DI pure water system×1
- 12″ electric reels with hoses×3
- Tanks: 200 gal water, 55 gal chem, 2 × 7 gal soapset
- RigLink remote and ClearView meteringset
- HP and soft-wash guns, wands and JRODsset
- Group 27 battery, fuse panel and chargerset
- Plus: enclosed trailer
- 7′ × 14′ enclosed tandem-axle trailer×1
- Spray-lined floor and lower wallsincl.
- Plus: window and facade kit
- 12 V pure-water delivery pump×1
- Manual reel, 150 ft × 3/8″ water-fed-pole hose×1
- 30 ft Tucker carbon fiber water-fed pole and brush×1
- Plus: ABZ C10 drone kit
- ABZ Innovation C10 cleaning drone×1
- ABZ Innovation C10 batteries×4
- ABZ Innovation Smart Charger 3000×1
- Adjustable 2-in-1 soft-wash / shooter nozzle×1
- 240° pivoting nozzle adapter×1
- 4-way J-Rod nozzle kit×1
- Drone Wash training, 3-day introincl.
Round out
the rig.
What our team adds to PEAK Pro and C10 orders. Hose length is the one decision to make before the first job.
-
Must-haveABZ C10 190 ft Hose (60 m)
Full-height reach for high-rise facades and tall structures.
Shop 190 ft hose -
Must-haveABZ Prop Guard for the C10
Protection for close-quarters work around facades, signage and structure.
Shop prop guard -
HoseABZ C10 95 ft Hose (30 m)
For low and mid-rise work where the rig parks close to the structure.
Shop 95 ft hose -
Extra powerABZ Innovation Battery
Four ship in the suite; spares keep the C10 working longer between charges.
Shop battery
Questions we get
about the PEAK Pro.
Straight answers from the team that configures and supports these rigs.
What's included, and what isn't?
The complete wash plant installed in a 7′ × 14′ enclosed trailer, with the Pro window kit, plus the ABZ C10 drone with four batteries, the Smart Charger 3000, a nozzle kit and 3-day intro Drone Wash training. You supply the tow vehicle; there's nothing to fit out.
How high can the C10 clean?
Up to 60 meters (about 197 ft). Onboard radar holds a steady standoff from the surface, and you choose Automated Mission Mode for large uniform walls (RTK recommended) or Manual Mode for irregular surfaces and windy sites.
What's the Drone Nerds high-flow wand?
A US-market wand modification available only through Drone Nerds, with a high-pressure mode (6 GPM at 3,000 PSI) and a soft-wash mode (14 GPM at 300 PSI). Only the wand is modified; the rest of the certified C10 system is factory-standard.
What do I need to tow it?
A vehicle rated to tow the loaded trailer, with a matching hitch and brake controller. It's a 7′ × 14′ enclosed trailer on a tandem axle rated at 3,500 lb per axle. Ask us for the loaded weight before you order so we can confirm your tow vehicle.
Can one person actually run it?
That's the design goal for the rig. RigLink starts and stops both engines and controls chemical injection and rinse remotely, and three electric reels handle hose deployment and retraction.
What's the difference between the two wash systems?
High pressure is 5.5 GPM at 3,000 PSI from a gear-driven triplex plunger pump on a Honda GX390, for heavy soil and hard surfaces. Soft wash is 11.5 GPM at 300 PSI through a Comet P40 diaphragm pump on a Honda GX160/GX200, for siding, roofs and delicate surfaces.
What does the Pro package add?
A manual window and facade kit: a 12 V pure-water delivery pump, a manual reel with 150 ft × 3/8″ water-fed-pole hose, and a 30 ft Tucker carbon fiber water-fed pole and brush.
How do I know the pure water is still pure?
The inline dual TDS meter shows TDS in and out in real time, so you can see membrane performance and schedule service before water quality drops.
Why no price on the page?
The manufacturer doesn't allow this product's price to be advertised online. Use the quote button and our team will get numbers back to you fast.
Spec your rig
with an expert.
Tell us your tow vehicle and the jobs you're bidding. We'll configure the trailer and the drone, help you plan the first jobs, and get you a quote.
Exclusive high-flow wand
The US-market C10 wand modification is available only through Drone Nerds.
Enterprise financing and purchasing
Approve financing, agency POs, and multi-unit pricing for cleaning fleets.
Setup and support
Real people who configure these rigs, from South Florida.
Questions we get
about the PEAK Pro.
Straight answers from the team that configures and supports these rigs.
What's included, and what isn't?
The complete wash plant installed in a 7′ × 14′ enclosed trailer, with the Pro window kit, plus the ABZ C10 drone with four batteries, the Smart Charger 3000, a nozzle kit and 3-day intro Drone Wash training. You supply the tow vehicle; there's nothing to fit out.
How high can the C10 clean?
Up to 60 meters (about 197 ft). Onboard radar holds a steady standoff from the surface, and you choose Automated Mission Mode for large uniform walls (RTK recommended) or Manual Mode for irregular surfaces and windy sites.
What's the Drone Nerds high-flow wand?
A US-market wand modification available only through Drone Nerds, with a high-pressure mode (6 GPM at 3,000 PSI) and a soft-wash mode (14 GPM at 300 PSI). Only the wand is modified; the rest of the certified C10 system is factory-standard.
What do I need to tow it?
A vehicle rated to tow the loaded trailer, with a matching hitch and brake controller. It's a 7′ × 14′ enclosed trailer on a tandem axle rated at 3,500 lb per axle. Ask us for the loaded weight before you order so we can confirm your tow vehicle.
Can one person actually run it?
That's the design goal for the rig. RigLink starts and stops both engines and controls chemical injection and rinse remotely, and three electric reels handle hose deployment and retraction.
What's the difference between the two wash systems?
High pressure is 5.5 GPM at 3,000 PSI from a gear-driven triplex plunger pump on a Honda GX390, for heavy soil and hard surfaces. Soft wash is 11.5 GPM at 300 PSI through a Comet P40 diaphragm pump on a Honda GX160/GX200, for siding, roofs and delicate surfaces.
What does the Pro package add?
A manual window and facade kit: a 12 V pure-water delivery pump, a manual reel with 150 ft × 3/8″ water-fed-pole hose, and a 30 ft Tucker carbon fiber water-fed pole and brush.
How do I know the pure water is still pure?
The inline dual TDS meter shows TDS in and out in real time, so you can see membrane performance and schedule service before water quality drops.
Why no price on the page?
The manufacturer doesn't allow this product's price to be advertised online. Use the quote button and our team will get numbers back to you fast.
- The complete wash plant
- TIG-welded aluminum skid, installed×1
- High-pressure system, 5.5 GPM / 3,000 PSI×1
- Soft wash system, 11.5 GPM / 300 PSI×1
- 4-stage RO/DI pure water system×1
- 12″ electric reels with hoses×3
- Tanks: 200 gal water, 55 gal chem, 2 × 7 gal soapset
- RigLink remote and ClearView meteringset
- HP and soft-wash guns, wands and JRODsset
- Group 27 battery, fuse panel and chargerset
- Plus: enclosed trailer
- 7′ × 14′ enclosed tandem-axle trailer×1
- Spray-lined floor and lower wallsincl.
- Plus: window and facade kit
- 12 V pure-water delivery pump×1
- Manual reel, 150 ft × 3/8″ water-fed-pole hose×1
- 30 ft Tucker carbon fiber water-fed pole and brush×1
- Plus: ABZ C10 drone kit
- ABZ Innovation C10 cleaning drone×1
- ABZ Innovation C10 batteries×4
- ABZ Innovation Smart Charger 3000×1
- Adjustable 2-in-1 soft-wash / shooter nozzle×1
- 240° pivoting nozzle adapter×1
- 4-way J-Rod nozzle kit×1
- Drone Wash training, 3-day introincl.
